Hung Windows

Aluminum Tilt window features an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology

Product Summary

Aluminum tilt windows features an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for both residential and light commercial applications. It's value price point, easy-to-clean tilt out sashes, and coordinating architectural circle top shapes make it a popular choice with developers.

Features

  • Frame Depth = 3-1/4"
  • AAMA CW-PG50 / C60
  • Insulated Glass Unit Depth = 7/8"~ for optimum insulation & sound reduction.
  • PPG "Intercept" Insulated Glass Spacer ~ the "warm-edge" technology of choice.
  • Tilt Sashes ~ for safe, easy cleaning of both top and bottom sashes.
  • Sloped Sill
  • Anti-Drift Head Clip Lock ~ automatically secures the top sash in the closed position for safety, security, and a weathertight seal.

Various Styles:

  • Double-Hung Tilt
  • Picture / Fixed
  • Sliders (2 & 3 Lites)

Options

  • Argon & Low-E ~ to enhance the thermal performance of the window.
  • Between-the-Glass or Applied Grids ~ to provide the elegant appearance of window panes.
  • Custom Colors and Finishes
  • Casement Fin~ provides a fast, easy and neat replacement.
  • A/C Oriel Kit~ easily accommodates air conditioners in the same building opening.
  • Continuous head & sill (2000A)
  • Architectural Shapes Available

Product Summary

Aluminum tilt windows features an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for both residential and light commercial applications. It's value price point, easy-to-clean tilt out sashes, and coordinating architectural circle top shapes make it a popular choice with developers.

Features

  • Frame Depth: 3-1/4"
  • AAMA Rating: CW-PG50
  • Insulated Glass Unit Depth = 7/8"-Enhanced insulation & sound reduction.
  • Powder Coat Paint on Standard Colors-The ultimate environmental friendly coating designed for durability.
  • Tilting Sashes-Make cleaning easy.
  • Metal Tilt Latch
  • Anti-Drift Head Clip Lock-Automatically secures the top sash in the closed position for safety, security, and a weather-tight seal
  • Continuous Anti Drift Clip at Bottom Lift Rail
  • Three Layers of Weather Strip On Sill
  • Hospital Sill

Options

  • Special Color Finishes-Custom Colors or two-tone available.
  • Colonial, Diamond or Georgian Grid or Exterior Applied Grid
  • Oriel Windows or A/C Oriel Kit
  • Low-E Coating & Argon-Enhances energy efficiency.

Product Summary

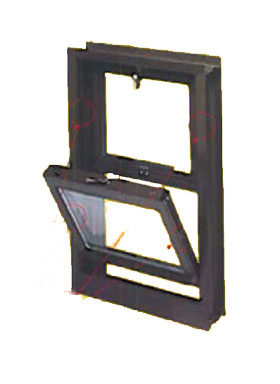

Aluminum tilt window features a high performance, a patented anti-bow pin design that prevents sash bowing in multi-story structures, heavy duty frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The easy-to-clean, tilt out sashes and patented anti-bowing technology make it a popular choice with developers.

Features

  • Frame Depth = 4-1/4"
  • AAMA AW-PG75
  • Insulated Glass Unit Depth = 1"
  • Double Strength Glass Panes
  • PPG "Intercept" Insulated Glass Spacer ~ the "warm-edge" technology of choice.
  • Heavy-Duty Construction ~ sill frame is .125" thick
  • Patented Anti-Bow Pin Design ~ a unique feature that prevents sash bowing.
  • Beveled "Putty Line Look"
  • Styling ~ for beauty and strength.
  • Tilt Sashes ~ for safe, easy cleaning
  • Internal Metal Tilt Latch w/Custodial Lock ~ strength and prevention of unauthorized use.
  • Anti-Drift Head Clip Lock
  • Bronze Cam Action Sash Lock ~ heavy-duty design ensures a lifetime of security and comfort.

Options

  • Argon & Low-E
  • Muntins ~ between-the-glass, applied, or true divided light.
  • Custom Colors and Finishes
  • Glazing Choice ~ Series 6000 marine glazing or Series 6000A "drop-in" glazing
  • Casement Fin ~ provides a fast, easy and neat replacement.
  • Pole RIng Hardware ~ available for tall windows.
  • Casement fin available
  • Panning & Interior Trim
  • Architectural Shapes Available

Product Summary

Aluminum side load windows features a high performance frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames in essential.

Features

  • Frame Depth = 3-1/4"
  • AAMA Rating: LC-PG60
  • Insulated Glass Unit Depth = 7/8"-Optimum insulation & sound reduction
  • Sloped Sill
  • Sideload Block & Tackle Balances
  • Anti-Drift Head Clip Lock-Automatically secures the top sash in the closed position for safety, security, and a wather-tight seal.
  • AAMA 2604 Powder Coat Finish-The durable finish that's also environmentally-friendly.

Options

  • Low-E Coating & Argon-Enhances energy efficiency.
  • Between-the-Glass or Exterior Applied Grids
  • Custom Colors and Finishes
  • Casement Fin-Provides a fast,easy and neat repleacement
  • A/C Oriel Kit-Easily accommodates air conditioners in the same building opening.
  • Sash Bypass

Product Summary

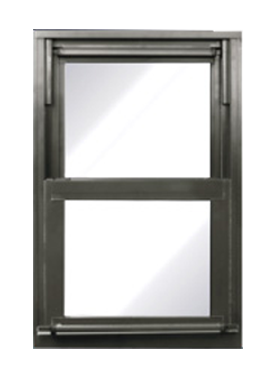

Series 5000, is a HC rated aluminum double-hung window with a 3-¼" jamb depth. Improved features, such as straight and narrow jamb, and continuous anti-bow pin is a proven performer for many years to come.

Features

  • Frame Depth = 3-1/4"
  • AAMA H-HC45
  • Insulated Glass Unit Depth = 1"~ for greater insulation & sound reduction.
  • PPG "Intercept" Insulated Glass Spacer ~ the "warm-edge" technology of choice.
  • Heavy-Duty Construction ~ sill frame is .078" thick.
  • Continuous Anti-bow pin
  • Straight Jamb Provides Equal Sightline
  • Continuous Top & Bottom Anti-Drift Clip Locks
  • Tilt Sashes ~ for safe, easy cleaning.
  • Double Internal Metal Tilt Latches
  • Full Width Anti-Drift Clip Locks On Both Sashes ~ weathertight sashes closure for safety, security

Options

  • Argon & Low-E ~ to enhance the thermal performance of the window.
  • Between-the-Glass or Applied Grids ~ to provide the elegant appearance of window panes.
  • Custom Colors and Finishes
  • Custodial Lock Tilt Latches ~ prevents unauthorized operation of the sash tilt feature.
  • Meeting Rail Sash Lock
  • Casement fin available
  • Easy-to-use H-mullion system.
  • Panning and Interior Trim ~ a full line of accessories are available.
  • Remove continous anti-bow pin possible. May affect HC rating.

Product Summary

Aluminum tilt window features a high performance, a patented anti-bow pin design that prevents sash bowing in multi-story structures, heavy duty frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The easy-to-clean, tilt out sashes and patented anti-bowing technology make it a popular choice with developers.

Features

  • Frame Depth = 3-1/4"
  • AAMA H-HC60
  • Insulated Glass Unit Depth = 1"~ for greater insulation & sound reduction.
  • PPG "Intercept" Insulated Glass Spacer ~ the "warm-edge" technology of choice.
  • Heavy-Duty Construction ~ sill frame is .093" thick.
  • Patented Anti-Bow Pin Design ~ prevents sash bowing.
  • Sloped Sill
  • Tilt Sashes ~ for safe, easy cleaning.
  • Double Internal Metal Tilt Latches
  • Full Width Anti-Drift Clip Locks On Both Sashes ~ weathertight sashes closure for safety, security

Options

  • Argon & Low-E ~ to enhance the thermal performance of the window.
  • Between-the-Glass or Applied Grids ~ to provide the elegant appearance of window panes.
  • Custom Colors and Finishes
  • Custodial Lock Tilt Latches ~ prevents unauthorized operation of the sash tilt feature.
  • Meeting Rail Sash Lock
  • Casement fin available
  • Easy-to-use H-mullion system.
  • Panning and Interior Trim ~ a full line of accessories are available.

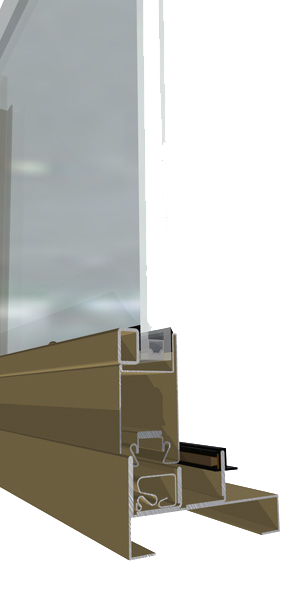

Features

45 minute fire rating
All Cold Rolled sections are formed from GALVANIZED STEEL
UL (Underwriters Laboratories) Listed and Certified
4 ¼” exterior frame depth
EPDM and Silicone Pile Weather-Stripping
Frames are coped and mechanically assembled
Glazing is held in place via mechanically fastened steel glazing beads
Can accommodate glazing ranging from 3/16″ to ¾” in O.A. thickness
Insulated glazing available for this series
All FR7600TSS windows will be factory glazed, unless ordered otherwise
1 Sweep lock at center of sash up to 36″, two sweep locks thereafter
1 Self Latching handle
Standard Optimum Window colors (refer to OWM color chart)
Units arrive with installation straps (upon request)

Options

RAL colors available as option
Non metallic color matches are optional & available upon request
Steel Break Metal trim
Half screens for operable sash is available
Limited Operation Stops are available

Download more detailed information on our fire rated doors.
FR7600TSS .25in Glass PDF
FR7600TSS .75in Glass PDF

45-90 Minute Fire-Rating

Optimum has revolutionized the construction industry by offering the most comprehensive line of steel fire rated windows. Today, we are one of the largest and most efficient manufacturers in our field, with fire rated products ranging from 45 to 90 minutes.

Optimum’s multiple window and door series are used in non-temperature rise applications and through various glazing options can be modified to address most fire rated applications.

Download more detailed information on our fire rated doors.
General Specs PDF
Glass Configuration Chart PDF
Install 1Q PDF
