Projected Windows

Aluminum Architectural Projected window series features a heavy-duty, high performance frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology.

Product Summary

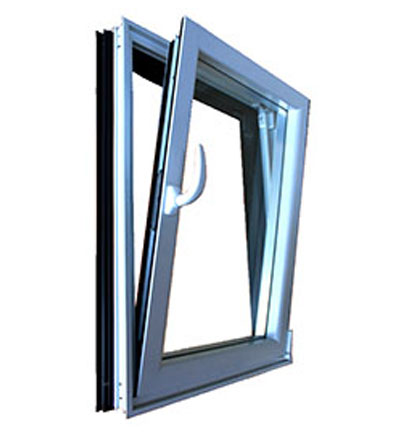

9000tt is AAMA rated AW70. The (AW) Architectural Window rating is the highest rating AAMA grants to a window product. The Evolution product line is a prime example of performance meeting beauty - offering a wide range of benefits: easy cleaning and ventilation, superior structural performance and an advanced thermal barrier to improve thermal performance. The distinct exterior profile, European-design hardware and the unmatched versatility of two-tone custom color capabilities will enhance the most sophisticated and cutting-edge designs.

Features

  • Frame Depth: 3-1/4”
  • AAMA Rating: AW-PG70
  • 1+1/4" Overall IGU-Enhanced insulation & sound reduction.
  • Energy Struct+Glazing-Industry-leading thermal performance
  • Structurally-Glazed Sash
  • European-Style Frame and Sash Design
  • Triple Gasket Seal
  • Pressure Equalized Design
  • Zero Sightline Sash
  • European-Style Corner Keys
  • AAMA 2604 Powder Coat Finish-The durable finish that's also environmentally-friendly.

Options

  • Low-E Coating & Argon-Enhances energy efficiency.
  • Between-the-Glass or Exterior Applied Grids
  • Versatile Two-Tone Custom Color Capability Thanks to Energy Struct
  • Continuous Master Frame
  • Key-Lock Handle Hardware
  • Receptor System & Subsill
  • Panning & Interior Trim
  • Custom Accessories Available

Product Summary

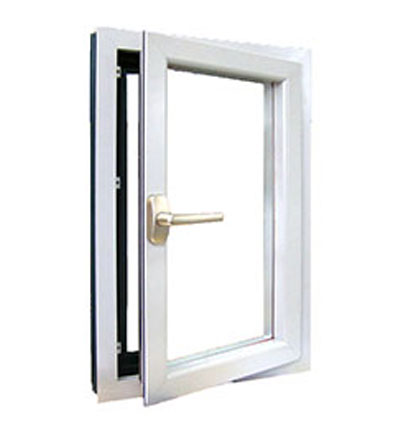

8800 is AAMA rated AW100. The (AW) Architectural Window rating is the highest rating AAMA grants to a window product. The evolution product line is a prime example of performance meeting beauty - offering a wide range of benefits: easy cleaning and ventilation, superior structural performance and an advanced thermal barrier to improve thermal performance. The unmatched versatility of two-tow custom color capabilities will enhance the most sophisticated and cutting-edge designs

Features

  • Frame Depth: 2-5/8”
  • AAMA Rating: AW-PG100
  • 1+1/4" Overall IGU-Enhanced insulation & sound reduction.
  • Energy Struct+Glazing-Industry-leading thermal performance
  • Structurally-Glazed Sash
  • European-Style Frame and Sash Design
  • Concealed 4-Bar Hinges
  • Triple Gasket Seal
  • Pressure Equalized Design
  • Zero Sightline Sash
  • European-Style Corner Keys
  • AAMA 2604 Powder Coat Finish-The durable finish that's also environmentally-friendly.

Options

  • Low-E Coating & Argon-Enhances energy efficiency.
  • Between-the-Glass or Exterior Applied Grids
  • Versatile Two-Tone Custom Color Capability Thanks to Energy Struct
  • Continuous Master Frame
  • Receptor System & Subsill
  • Panning & Interior Trim
  • Custom Accessories Available

Product Summary

Series 8520 aluminum architectural projected window series features a heavy-duty, high performance frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "Intercept ULTRA" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The heavy-duty frame construction allows for larger expanses of glass that provide unobstructed views. Ergonomically-designed hardwares make this series a popular choice for developers of prestige commercial projects, and upscale residential communities.

Features

  • Frame Depth = 2+5/8"
  • AAMA Rated: AW-PG80
  • 1” Insulated Glass Unit
  • PPG "Intercept" Insulated Glass Spacer ~ the "warm edge" technology of choice.
  • Heavy-Duty Construction ~ frame and sill are .125" thick for utmost strength and durability.
  • Double Weatherstripping ~ Two rows of 1/4" bulb used on sash perimeter.
  • Four-Bar HS/SS Friction Hinges ~ hold sash in open position.
  • Integral Handle Rail
  • AAMA 2604 Powder Coat Finish

Options

  • Argon & Low-E ~ to enhance the thermal performance of the window.
  • Muntins ~ between-the-glass applied
  • Custom Colors & Finishes
  • 3¼” Frame Depth
  • 1¼” Insulated Glass Unit Thickness - Enhanced insulation & sound reduction.
  • 1½” Casement Fin
  • Continuous Master Frame Design - Up to 3-lites
  • Receptor System & Subsill
  • Panning & Interior Trim
  • Fixed - 8510, Project Out - 8520, Project In - 8530
  • Eurogroove Hinge

Product Summary

ThermoBlok™ aluminum architectural projected window series features a heavy-duty, high performance frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners.

Features

  • Frame Depth = 2-1/4"
  • Insulated Glass Unit Depth = 1"
  • Glass Panes = 1/8" thick
  • PPG "Intercept" Insulated Glass Spacer ~ the "warm edge" technology of choice.
  • Heavy-Duty Construction ~ frame and sill are .125" thick for utmost strength and durability.
  • Double Weatherstripping ~ Two rows of 1/4" bulb used on sash perimeter.
  • Four-Bar HS/SS Friction Hinges ~ hold sash in open position.
  • Two Lock/Keeper Assemblies Per Sash ~ (small sizes use only one).
  • Full Screens ~ Access doors for project-in/out handles.

Options

  • Argon & Low-E ~ to enhance the thermal performance of the window.
  • Muntins ~ between-the-glass applied, or true window panes.
  • Custom Colors & Finishes
  • Heavy-Duty 45° HS/SS Friction Hinges
  • Push/Pull Handles ~ w/o crank for casement.
  • Casement Fin ~ provides a fast, easy and neat replacement.
  • Panning and Interior Trim

Product Summary

ThermoBlok™ aluminum architectural projected window series features a heavy-duty, high performance frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The heavy-duty frame construction allows for larger expanses of glass that provide unobstructed views. Ergonomic handles, [optional integrated shading systems], and fashionable crank casement hardware make this series a popular choice for developers of prestige commercial projects, and upscale residential communities.

Features

  • Frame Depth: 2-1/4”
  • Heavy-Duty Construction-0.125" thick.
  • Insulated Glass Unit Depth= 1”-Enhanced insulation & sound reduction.
  • Double Weatherstripping-Two rows of 1/4" bulb used on sash perimeter.
  • Four-Bar Stainless Steel Friction Hinges-Able to keep sash in open postion.
  • Full Screens-Access doors for project-out handles.
  • White / Bronze handle & Keeper
  • Double Strength Glass
  • AAMA 2604 Powder Coat Finish-The durable finish that's also environmentally-friendly.

Options

  • Low-E Coating & Argon-Enhances energy efficiency.
  • Between-the-Glass or Exterior Applied Grids
  • Custom Colors and Finishes
  • Casement Fin-Provides a fast, easy, and neat replacement.
  • Continuous Master Frame Design-Up to 3-lites.
  • Receptor System & Subsill
  • Panning & Interior Trim
  • Custom Accessories Available

Product Summary

Aluminum architectural projected window series features a heavy-duty, high performance frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The heavy-duty frame construction allows for larger expanses of glass that provide unobstructed views. Ergonomic handles, [optional integrated shading systems], and fashionable crank casement hardware make this series a popular choice for developers of prestige commercial projects, and upscale residential communities.

Features

  • Frame Depth: 2-1/4”
  • Heavy-Duty Construction-0.125" thick.
  • Insulated Glass Unit Depth= 1”-Enhanced insulation & sound reduction.
  • Double Weatherstripping-Two rows of 1/4" bulb used on sash perimeter.
  • Four-Bar Stainless Steel Friction Hinges-Able to keep sash in open postion.
  • Full Screens-Access doors for project-out handles.
  • White / Bronze handle & Keeper
  • Double Strength Glass
  • AAMA 2604 Powder Coat Finish-The durable finish that's also environmentally-friendly.

Options

  • Low-E Coating & Argon-Enhances energy efficiency
  • Between-the-Glass or Exterior Applied Grids
  • Custom Colors and Finishes
  • Casement Fin-Provides a fast, easy, and neat replacement.
  • Continuous Master Frame Design-Up to 3-lites.
  • Receptor System & Subsill
  • Panning & Interior Trim
  • Custom Accessories Available

Product Summary

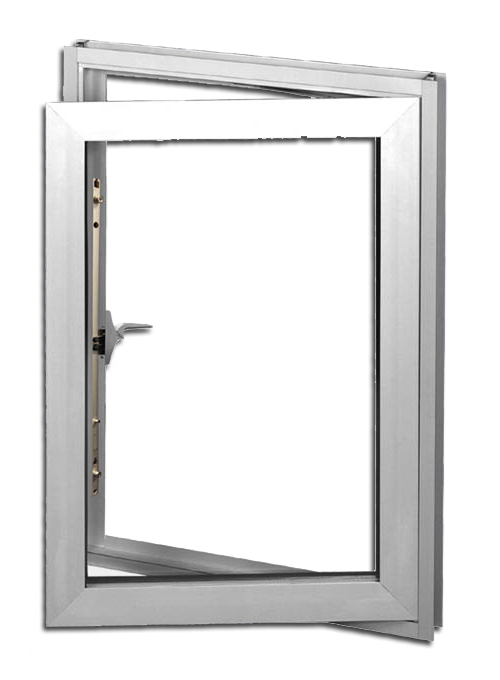

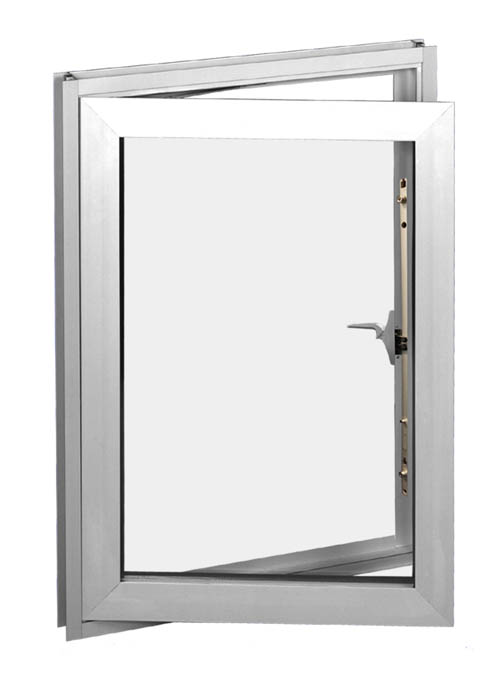

Series 8500 aluminum architectural projected window series features a heavy-duty, high performance frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "Intercept ULTRA" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The heavy-duty frame construction allows for larger expanses of glass that provide unobstructed views. Ergonomically-designed hardwares make this series a popular choice for developers of prestige commercial projects, and upscale residential communities.

Features

  • Frame Depth = 2+5/8"
  • AAMA Rated: AW-PG100
  • 1” Insulated Glass Unit
  • PPG "Intercept" Insulated Glass Spacer ~ the "warm edge" technology of choice.
  • Heavy-Duty Construction ~ frame and sill are .125" thick for utmost strength and durability.
  • Double Weatherstripping ~ Two rows of 1/4" bulb used on sash perimeter.
  • Four-Bar HS/SS Friction Hinges ~ hold sash in open position.
  • Single Master Frame with Inswing/Outswing Operational Types Available
  • Integral Handle Rail - Push Out Style
  • AAMA 2604 Powder Coat Finish

Options

  • Argon & Low-E ~ to enhance the thermal performance of the window.
  • Muntins ~ between-the-glass applied
  • Custom Colors & Finishes
  • 3¼” Frame Depth
  • 1¼” Insulated Glass Unit Thickness - Enhanced insulation & sound reduction
  • 1½” Casement Fin
  • Continuous Master Frame Design - Up to 3-lites
  • Receptor System & Subsill
  • Panning & Interior Trim
  • Fixed - 8510, Project Out - 8520, Project In - 8530
  • Eurogroove Hinge

Product Summary

Series 8530 aluminum architectural projected window series features a heavy-duty, high performance frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "Intercept ULTRA" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The heavy-duty frame construction allows for larger expanses of glass that provide unobstructed views. Ergonomically-designed hardwares make this series a popular choice for developers of prestige commercial projects, and upscale residential communities.

Features

  • Frame Depth = 2+5/8
  • AAMA Rated: AW-PG80
  • 1” Insulated Glass Unit
  • PPG "Intercept" Insulated Glass Spacer ~ the "warm edge" technology of choice.
  • Heavy-Duty Construction ~ frame and sill are .125" thick for utmost strength and durability.
  • Double Weatherstripping ~ Two rows of 1/4" bulb used on sash perimeter.
  • Four-Bar HS/SS Friction Hinges ~ hold sash in open position.
  • Integral Handle Rail
  • AAMA 2604 Powder Coat Finish

Options

  • Argon & Low-E ~ to enhance the thermal performance of the window.
  • Muntins ~ between-the-glass applied
  • Custom Colors & Finishes
  • 3¼” Frame Depth
  • 1¼” Insulated Glass Unit Thickness - Enhanced insulation & sound reduction.
  • 1½” Casement Fin
  • Continuous Master Frame Design - Up to 3-lites
  • Receptor System & Subsill
  • Panning & Interior Trim
  • Fixed - 8510, Project Out - 8520, Project In - 8530
  • Eurogroove Hinge
