Window Balances

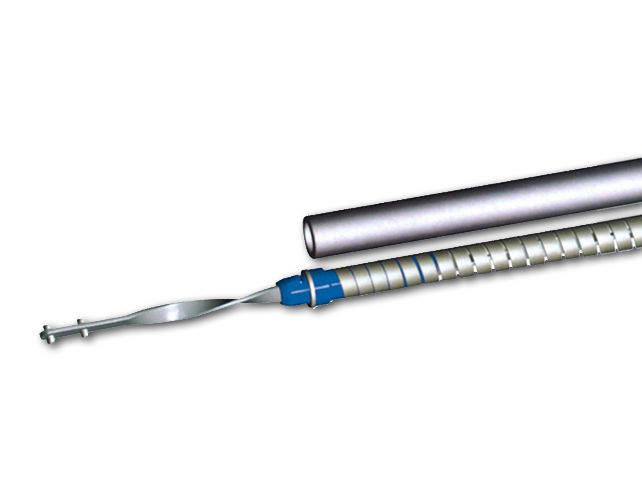

The sash support system features a spiral tube balance with a cross piece, for a non-tilt window. Used in aluminum windows. Spiral window balances come fully lubricated and ready to be charged.

Sash Suppport Systems

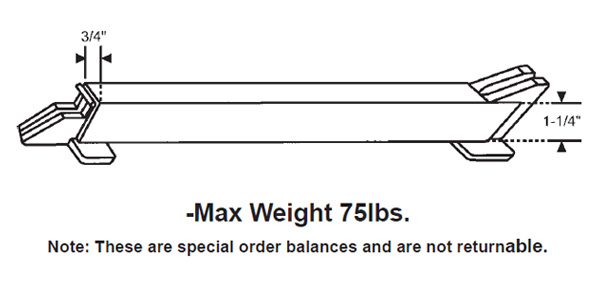

57 Series Non-Tilt Balances

57 Series

Ordering Information

  1. Measure metal channel length. Do not include any attached ends.
  2. Check number stamped on channel. The first two digits represents the channel length. The second two digits represent the sash weight. (e.g.: The number stamped on the balance is 3248, you would then order #57-32S48. With 57 referring to our series, followed by the length of the balance then the sash weight.)

Note: Top and bottom guides shown below will automatically be attached to your balance unless otherwise specified.

Note: With the 58 Series take out system, the sash balance becomes part of the sash. Therefore, when calculating sash weights, you must add the physical balance weight to the sash weights.

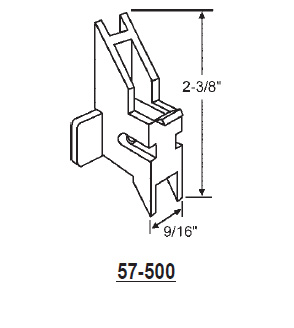

Top Guide

Top Guide

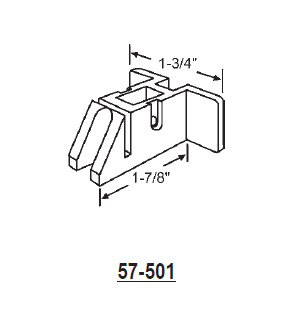

Bottom Guide

Bottom Guide

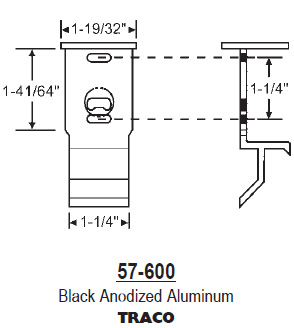

Sash Cap

Sash Cap

Take-Out Clip

Take-Out Clip

Sash Suppport Systems

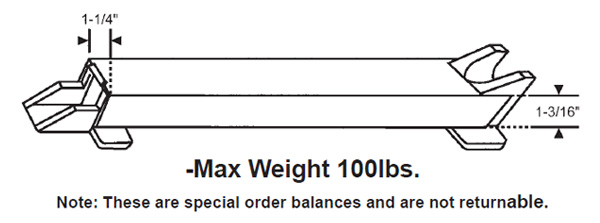

58 Series Non-Tilt Balances

58 Series Balances are Designed for Heavy Duty
Commercial Windows

58 Series

Ordering Information

  1. Measure metal channel length. Do not include any attached ends.
  2. Check number stamped on channel. The first two digits represents the channel length. The second two digits represent the sash weight. (e.g.: The number stamped on the balance is 3248, you would then order #58-32S48. With 58 referring to our series, followed by the length of the balance then the sash weight.)

Note: Top and bottom guides shown below will automatically be attached to your balance unless otherwise specified.

Note: With the 58 Series take out system, the sash balance becomes part of the sash. Therefore, when calculating sash weights, you must add the physical balance weight to the sash weights.

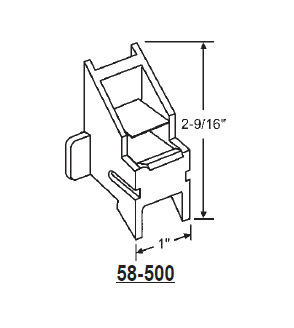

Top Guide

Top Guide

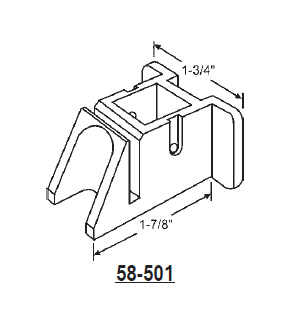

Bottom Guide

Bottom Guide

Cam

Cam

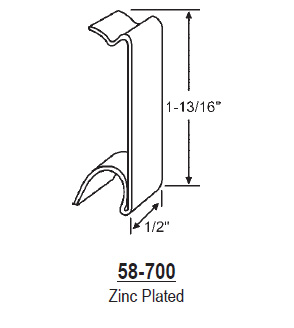

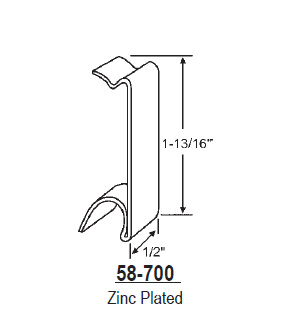

Take-Out Clip

Take-Out Clip

Sash Suppport Systems

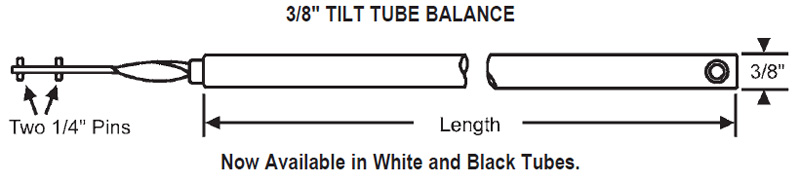

83 Series Balances

83 Series

Ordering Information

  1. Measure metal tube length. (Do not include nylon bearing.)
  2. Identify color of bearing (e.g. white or red) and select corresponding part number from the chart below.
  3. When ordering a black or white tube, add a B (black) or W (white) at the end of the part number

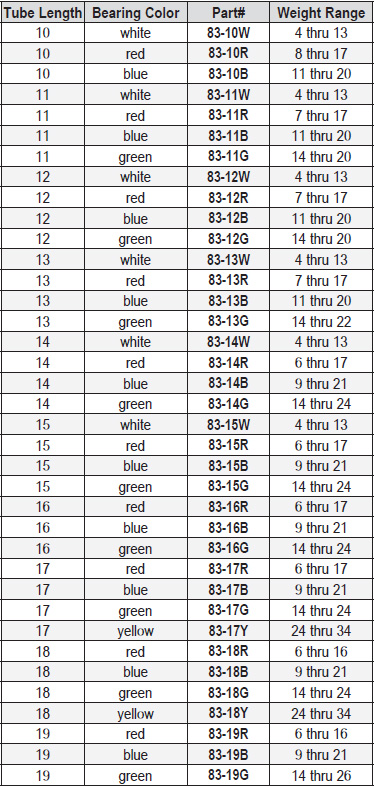

Chart 1

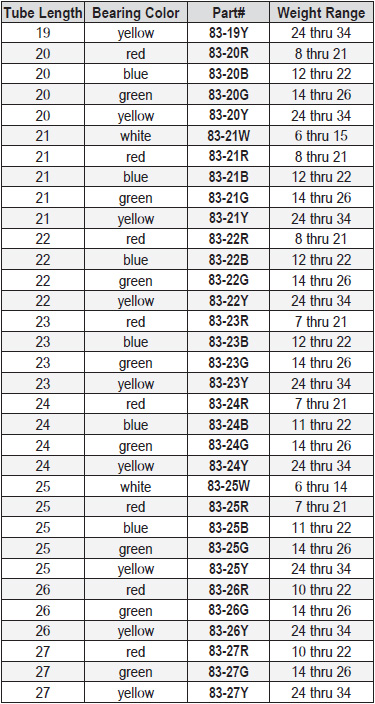

Chart 2

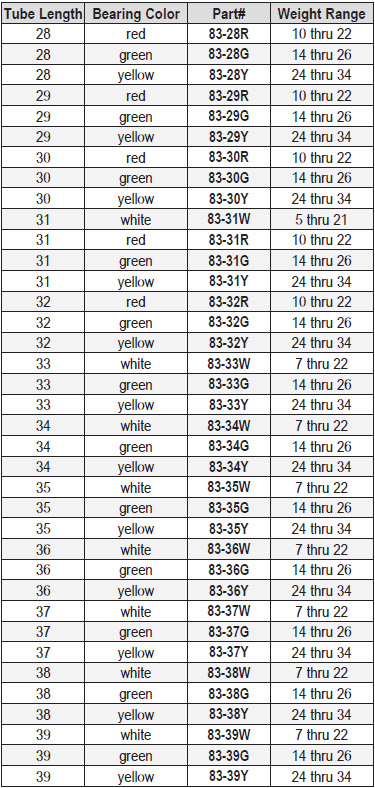

Chart 3

83 Series Balance Accessories

Pivot Lock Shoes

Black Cam
Red Cam
White Cam

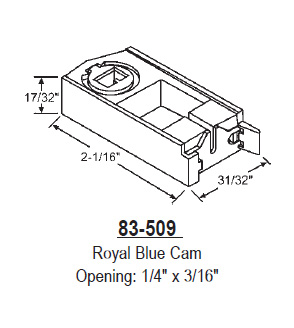

Royal Blue Cam

Sash Suppport Systems


Tilt & Non-Tilt Spiral Balances

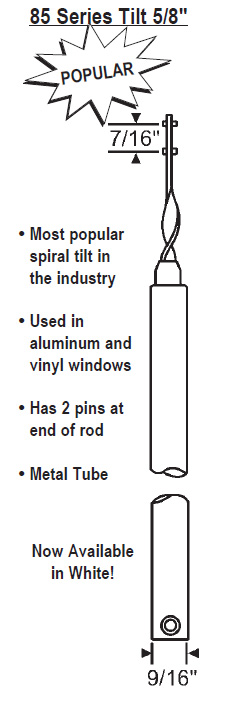

85 Series Tilt 5/8
85M Series Non-Tilt 5/8
85Z Series Pre-Tensioned Tilt 5/8

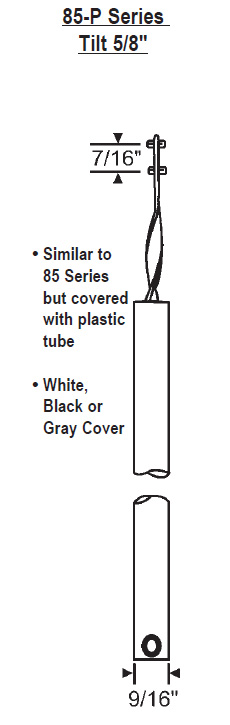

85-P Series Tilt 5/8

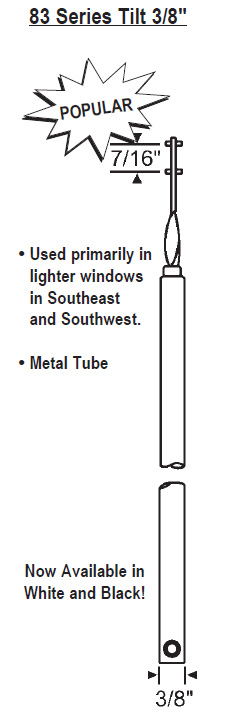

83 Series Tilt 3/8

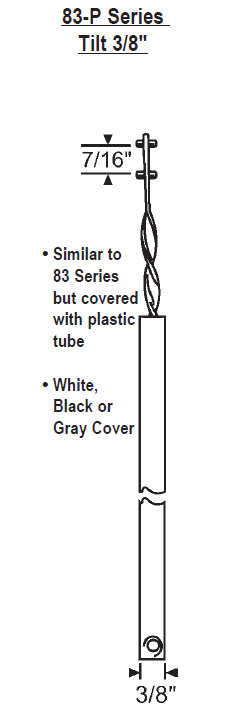

83-P Series Tilt 3/8

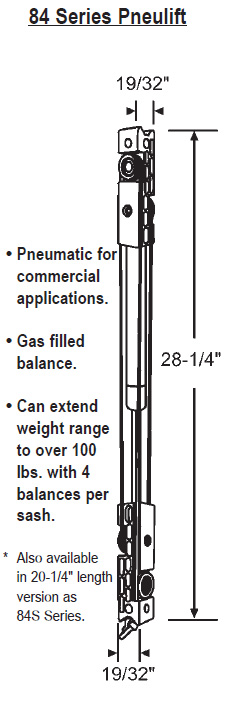

84 Series Pneulift

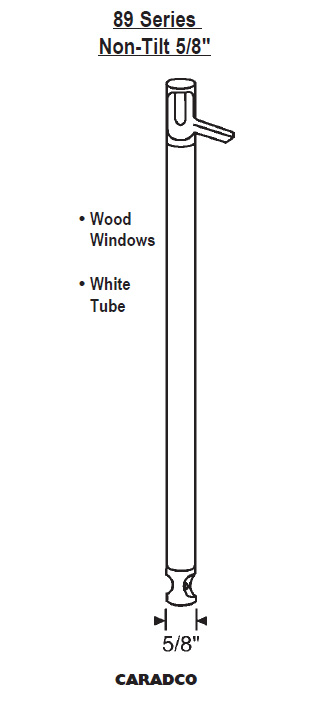

89 Series Non-Tilt 5/8
88L Series Tilt or Non-Tilt

88LL Series Tilt & Non-Tilt

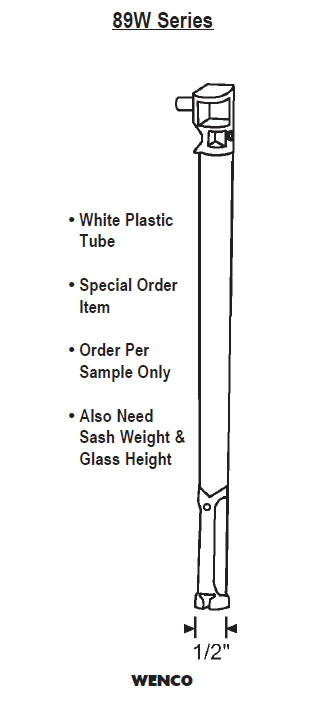

89W Series
70 Series Non-Tilt 5/8

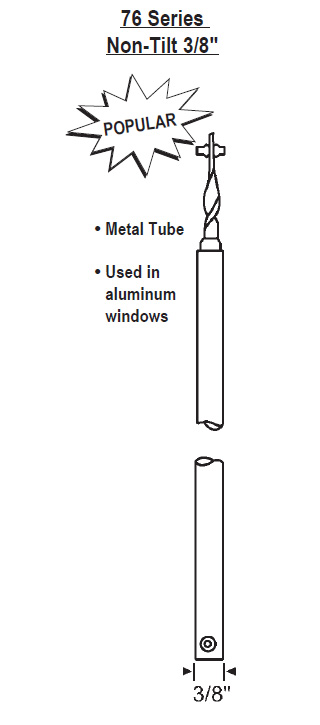

76 Series Non-Tilt 3/8
