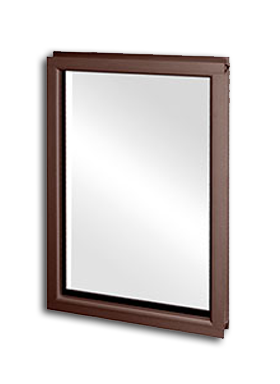

Picture/Fixed Windows

Aluminum Picture window features an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology.

Product Summary

ThermoBlok aluminum picture window features an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for both residential and light commercial applications. It's value price point, easy-to-clean tilt out sashes, and coordinating architectural circle top shapes make it a popular choice with developers

Features

  • Frame Depth: 3-1/4"
  • AAMA Rating: CW-PG60
  • Insulated Glass Unit Depth = 7/8"-Enhanced insulation & sound reduction.
  • Double Strength Glass
  • Maximum Daylight / Glass with Minimum Frame
  • AAMA 2604 Powder Coat Finish-The durable finish that's also environmentally-friendly.

Options

  • Low-E Coating & Argon-Enhances energy efficiency.
  • 1" Insulated Glass Unit
  • Between-the-Glass or Exterior Applied Grids
  • Custom Colors and Finishes
  • Nailing Fin-Designed for new construction
  • Casement Fin-Provides a fast, easy, and neat replacement.
  • Continuous T-Mull Configuration
  • Architectural Shapes
  • 1" Glazing Pocket

Product Summary

CTP-5100 AW-Rated fixed windows feature a unique mulling system that’s built into the window master frame. This eliminates the need for separate mullion pieces, thus cutting down installation time and costs without compromising overall unit integrity.

Features

  • Frame Depth: 3-1/4"
  • AAMA Rating: AW-PG100
  • Insulated Glass Unit Depth = 1"-Enhanced insulation & sound reduction.
  • Double Strength Glass
  • Male & Female Frame
  • Maximum Daylight / Glass with Minimum Frame
  • AAMA 2604 Powder Coat Finish-The durable finish that's also environmentally-friendly.

Options

  • Low-E Coating & Argon-Enhances energy efficiency.
  • Between-the-Glass or Exterior Applied Grids
  • Custom Colors and Finishes

Product Summary

ThermoBlok aluminum picture window features a high performance, a patented anti-bow pin design that prevents sash bowing in multi-story structures, heavy duty frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The easy-to-clean and patented anti-bowing technology make it a popular choice with developers.

Features

  • Frame Depth: 4-1/4”
  • AAMA Rating: AW-PG75
  • Heavy Duty Extrusion
  • Thermal-Break Sash & Frame
  • Insulating Glass Unit: 1”
  • Continuous Anti-Drift Clip Lock Rails
  • Continuous Meeting Pull Rail
  • Dual Stainless Steel Roller Bearings
  • Stainless Steel Reinforced Frame Roller Track
  • Drop-In Glazing Bead

Options

  • Low-E Coating & Argon
  • Between-the-Glass or Exterior Applied Grids
  • Custom Colors and Finishes
  • Casement Fin
  • Receptor System & Subsill
  • Architectural Shapes

Product Summary

ThermoBlok aluminum picture window features a high performance, a patented anti-bow pin design that prevents sash bowing in multi-story structures, heavy duty frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The easy-to-clean and patented anti-bowing technology make it a popular choice with developers

Features

  • Frame Depth: 4-1/4”
  • AAMA Rating: AW-PG75
  • Heavy Duty Extrusion
  • Thermal-Break Sash & Frame
  • Insulating Glass Unit: 1”
  • Continuous Anti-Drift Clip Lock Rails
  • Continuous Meeting Pull Rail
  • Dual Stainless Steel Roller Bearings
  • Stainless Steel Reinforced Frame Roller Track
  • Drop-In Glazing Bead

Options

  • Low-E Coating & Argon
  • Between-the-Glass or Exterior Applied Grids
  • Custom Colors and Finishes
  • Casement Fin
  • Receptor System & Subsill
  • Architectural Shapes

Product Summary

ThermoBlok aluminum architectural projected window series features a heavy-duty, high performance frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The heavy-duty frame construction allows for larger expanses of glass that provide unobstructed views. Ergonomic handles, [optional integrated shading systems], and fashionable crank casement hardware make this series a popular choice for developers of prestige commercial projects, and upscale residential communities.

Features

  • Frame Depth: 2-1/4”
  • Heavy-Duty Construction-0.125" thick.
  • Insulated Glass Unit Depth= 1”-Enhanced insulation & sound reduction.
  • Double Strength Glass
  • AAMA 2604 Powder Coat Finish-The durable finish that's also environmentally-friendly.
  • Curved Glazing Head

Options

  • Low-E Coating & Argon-Enhances energy efficiency.
  • Between-the-Glass or Exterior Applied Grids
  • Custom Colors and Finishes
  • Casement Fin-Provides a fast, easy, and neat replacement.
  • Continuous Master Frame Design-Up to 3-lites.
  • Receptor System & Subsille
  • Panning & Interior Trim
  • Architectural Shapes

Product Summary

Aluminum tilt window features a high performance, a patented anti-bow pin design that prevents sash bowing in multi-story structures, heavy duty frame structure, an innovative polyurethane thermal barrier technology that thermally breaks conductivity of the aluminum frame to substantially reduce thermal transfer from exterior of window to interiors, and "intercept" warm edge glass spacer technology. These integrated features reduce heating and cooling loads on HVAC systems, providing long term energy efficiency and utility savings to property owners. This series is ideal for multi-story commercial projects where high strength structural integrity of the window frames is essential. The easy-to-clean, tilt out sashes and patented anti-bowing technology make it a popular choice with developers.

Features

  • Frame Depth = 3-1/4"
  • AAMA H-HC60
  • Insulated Glass Unit Depth = 1"~ for greater insulation & sound reduction.
  • PPG "Intercept" Insulated Glass Spacer ~ the "warm-edge" technology of choice.
  • Heavy-Duty Construction ~ sill frame is .093" thick.
  • Patented Anti-Bow Pin Design ~ prevents sash bowing.
  • Sloped Sill
  • Tilt Sashes ~ for safe, easy cleaning.
  • Double Internal Metal Tilt Latches
  • Full Width Anti-Drift Clip Locks On Both Sashes ~ weathertight sashes closure for safety, security

Options

  • Argon & Low-E ~ to enhance the thermal performance of the window.
  • Between-the-Glass or Applied Grids ~ to provide the elegant appearance of window panes.
  • Custom Colors and Finishes
  • Custodial Lock Tilt Latches ~ prevents unauthorized operation of the sash tilt feature.
  • Meeting Rail Sash Lock
  • Casement fin available
  • Easy-to-use H-mullion system.
  • Panning and Interior Trim ~ a full line of accessories are available.

Features

45 minute fire rating
All Cold Rolled sections are formed from GALVANIZED STEEL
UL (Underwriters Laboratories) Listed and Certified
4 ¼” exterior frame depth
EPDM and Silicone Pile Weather-Stripping
Frames are coped and mechanically assembled
Glazing is held in place via mechanically fastened steel glazing beads
Can accommodate glazing ranging from 3/16″ to ¾” in O.A. thickness
Insulated glazing available for this series
All FR7600TSS windows will be factory glazed, unless ordered otherwise
1 Sweep lock at center of sash up to 36″, two sweep locks thereafter
1 Self Latching handle
Standard Optimum Window colors (refer to OWM color chart)
Units arrive with installation straps (upon request)

Options

RAL colors available as option
Non metallic color matches are optional & available upon request
Steel Break Metal trim
Half screens for operable sash is available
Limited Operation Stops are available

Download more detailed information on our fire rated doors.
FR7600TSS .25in Glass PDF
FR7600TSS .75in Glass PDF

45-90 Minute Fire-Rating

Optimum has revolutionized the construction industry by offering the most comprehensive line of steel fire rated windows. Today, we are one of the largest and most efficient manufacturers in our field, with fire rated products ranging from 45 to 90 minutes.

Optimum’s multiple window and door series are used in non-temperature rise applications and through various glazing options can be modified to address most fire rated applications.

Download more detailed information on our fire rated doors.
General Specs PDF
Glass Configuration Chart PDF
Install 1Q PDF
